Algoltek安格產品選型|轉HDMI|轉VGA方案|AG安格科技|Algoltek代理商

發布時間：2020-6-16 11:33 發布者：QQ1540182856

關鍵詞：安格產品選型 , HDMI方案 , VGA方案 , Algoltek代理商

Algoltek安格科技主要提供各種格式的視頻轉換的整體解決方案，例如MHL，HDMI，VGA，DisplayPort，Type-C ALT模式，廣泛應用于在設備和信源設備之間切換/分離視頻信號的ASIC解決方案，安格瑞科技代理ALGOLTEK產品，提供全程技術資料。

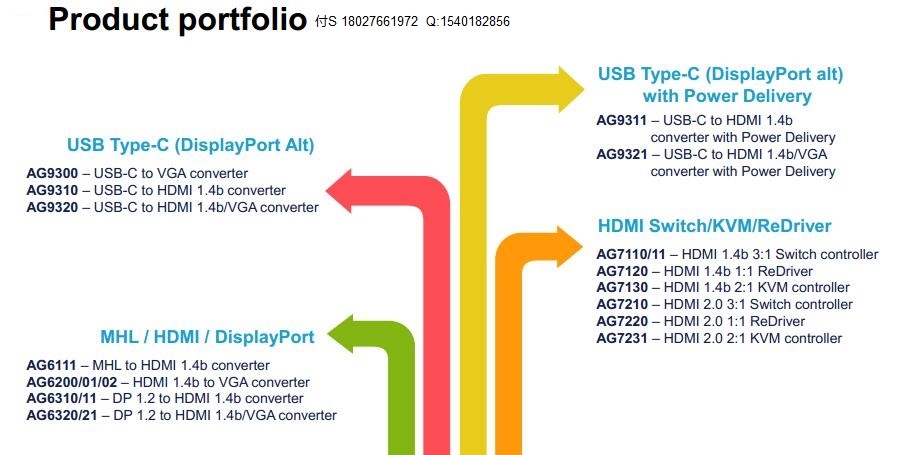

Algoltek安格產品線選型表如下：


Product P/N	Application	Product Description/ Resolution	MP Schedule	Downloa
AG6111	MHL to HDMI Converter	※ Compliant to MHL2.2 and HDMI1.4b	MP Now
		※ Resolution and Frame Rate:
		- 1080p 60 frame
		- 3D as 1080p 30 frames in Packed pixel mode
AG6200	HDMI to VGA Converter	※ Compliant to HDMI1.4b and VESA VSISTM V1.2 Standard	MP Now
AG6200	HDMI to VGA Converter	※ VGA Resolution: 1920X1200@60Hz	MP Now
AG7110	HDMI 3:1 Switch	※ 3-In to 1-Out Switcher	MP Now
		※ Compliant to HDMI1.4b
		※ Resolution and Frame Rate:
		- Support 340 MHz pixel clocks
		- Compatible with 36-bit deep color
AG7111	HDMI 3:1 Switch	※ 3-In to 1-Out Switcher	MP Now
		※ Compliant to HDMI1.4b
		※ Resolution and Frame Rate:
		- Support 340 MHz pixel clocks
		- Compatible with 36-bit deep color
AG7120	HDMI 1:1 ReDriver	※ Compliant to HDMI1.4b	MP Now
		※ Resolution and Frame Rate:
		- Support 340 MHz pixel clocks
		- Support 4K2K@30Hz, compatible with 36-bit deep color
AG6300	DP to VGA Converter	※ Embedded 16 bit MCU	New Launch
		※ External SPI flash supported for firmware upgrade
		※ Down Spread Spectrum Clock (SSC) supported
		※ On-chip HDCP1.4 Key Integrated
		※ Support I2S stereo audio interface
AG6310	DP to HDMI Converter	※ Embedded 16 bit MCU	New Launch
		※ External SPI flash supported for firmware upgrade
		※ Down Spread Spectrum Clock (SSC) supported
		※ On-chip HDCP1.4 Key Integrated
		※ Support I2S stereo audio interface
AG6320	DP to HDMI/VGA Converter	※ Embedded 16 bit MCU	New Launch
		※ External SPI flash supported for firmware upgrade
		※ Down Spread Spectrum Clock (SSC) supported
		※ On-chip HDCP1.4 Key Integrated
		※ Support I2S stereo audio interface
AG9300	USB Type-C to VGA Converter	※ Type-C DP ALT mode supported	New Launch
		※ Embedded 16 bit MCU
		※ External SPI flash supported for firmware upgrade
		※ Down Spread Spectrum Clock (SSC) supported
		※ On-chip HDCP1.4 Key Integrated
		※ Support I2S stereo audio interface
AG9310	USB Type-C to HDMI Converter	※ Type-C DP ALT mode supported	New Launch
		※ Embedded 16 bit MCU
		※ External SPI flash supported for firmware upgrade
		※ Down Spread Spectrum Clock (SSC) supported
		※ On-chip HDCP1.4 Key Integrated
		※ Support I2S stereo audio interface
AG9320	USB Type-C to HDMI/VGA Converter	※ Type-C DP ALT mode supported	New Launch
		※ Embedded 16 bit MCU
		※ External SPI flash supported for firmware upgrade
		※ Down Spread Spectrum Clock (SSC) supported
		※ On-chip HDCP1.4 Key Integrated
		※ Support I2S stereo audio interface
